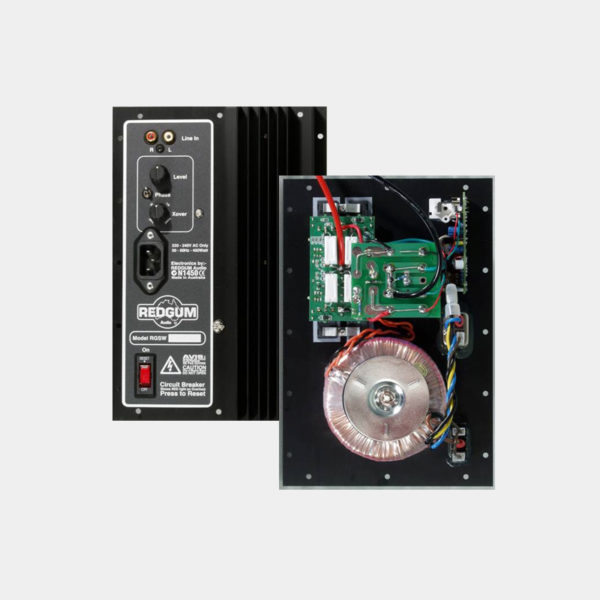

REDGUM RGSW2 Plate Amplifier
When you want the Subwoofer amplifier that other manufacturers choose.
Bass weight and Extension are the key words.
For installation in fixed installation, DIY or existing passive subwoofers.
For installation in fixed installation, DIY or existing passive subwoofers.
- 200WRMS power output into 8 ohms (300WRMS into 4 ohms) using a 300va transformer
- Fully sealed plate for installation direct into subwoofer enclosure wall
- Electronic Crossover adjustable from 20Hz to 200Hz
- Highly-stable, Audiophile-quality MOSFET output stages
- Phase reversal switch for ease of position adjustment
- Level control to allow matching with a wide range of Home Theatre systems
- ‘Always On’ allows for instant operation with no ‘warm-up period
- Power switch incorporates overload circuit-breaker with ‘trip’ light
- Rigid one-piece heat-sink and plate prevent vibration
- Attractive slimline design: 250H x 172W x (60 internal 30 external) D mm;
9.8H x 6.8W x (2.4 internal 1.2 external) D in - Optional Hi-Level input board to allow connection direct to speaker lines
- 1 Year Warranty
| Weight | 4 kg |
|---|---|
| Dimensions | 31 × 18 × 12 cm |
| OHMS | 4 Ω, 8 Ω |
| WRMS | 200W (8Ω), 300W (4Ω) |
| PRODUCT DIMENSIONS | H 250 x W 172 x D 90 (60 internal 30 external) mm / H 9.8 x W 6.8 x D 3.6 (2.4 internal 1.2 external) in |
