REDGUM ‘Audio Pipeline’ OFC RCA Interconnect 1.5m
The Design:
The REDGUM RGAP ‘Audio Pipeline’ OFC RCA interconnect cables are researched, developed, designed and manufactured in conjunction with some of the most knowledgeable specialists in the industry. Designed to provide focus and sound staging, with a strong sense of three-dimensionality, resolution and detail.
Take a listen and prepare to be amazed!
“Audio Pipeline” – the name that has been trusted since 2003 as it makes all the right connections between our products! (And yours, too.)
Available in lengths of 0.5m, 1m, 1.5m and 2m.
The Construction of RGAP RCA Interconnects:
The Centre (signal) conductor comprises of a bundle of 80 cores of 0.09mm Oxygen-Free Copper (OFC) conductor, lightly twisted, and encased in a special foamed polyethylene insulating jacket.
Both channels are then individually screened to a low-noise specification with a 12-section x 9-strand spc braided OFC sheath, designed to achieve excellent RF rejection, very low capacitance and a low noise floor.

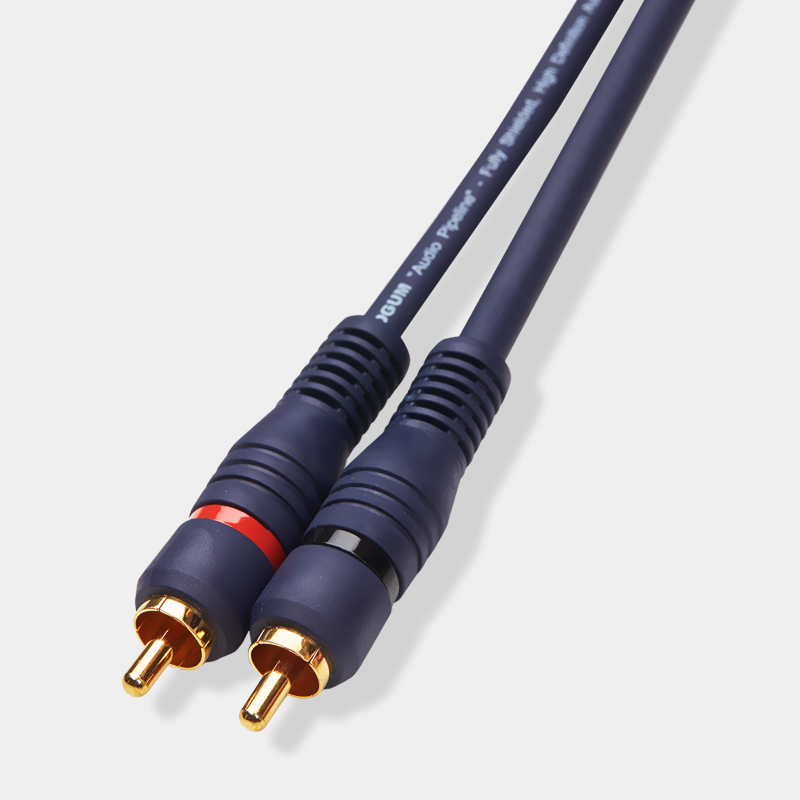

The final outer covering is a matte blue jacket with silver printing. The cable is terminated with gold-plated RCA connectors, which feature an easy grip, ergonomically designed barrel, a Teflon insulator, and matching matte blue jacket.
The Result:
The REDGUM RGAP ‘Audio Pipeline’ OFC RCA interconnect accurately extracts the maximum available information from a recording without ever erring towards artifice or over-emphasis. The Low Capacitance results in less high frequency attenuation and distortion.
What you get is a cable capable of clarity and signal integrity even over very long distances. Reproduction spans a broad and unencumbered frequency range with smooth, effortless and seamless integration from very low to very high frequencies, without introducing any unnatural peaks or troughs.
The Technicals:
These are real-world measurements of the totally-finished cable (i.e. including the gold RCA plug terminations):
| Model | Length | Resistance | Inductance | Capacitance |
| RGAP 05 | 0.5m | 0.04ohm | 0.09uH @200kHz | 55.7pF @200kHz |
| RGAP 1 | 1m | 0.08 ohm | 0.18uH @200kHz | 82.3pF @200kHz |
| RGAP 15 | 1.5m | 0.12 ohm | 0.27uH @200kHz | 108.9pF @200kHz |
| RGAP 2 |
2m | 0.16 ohm | 0.36uH @200kHz | 135.5pF @200kHz |
The short Technical version:
Is it a good interconnect? – Yes, it is!
| Weight | 0.17 kg |
|---|---|
| Dimensions | 24 × 17 × 2 cm |
| PRODUCT DIMENSIONS | 1.5m |
| OHMS | 0.12 Ω |
| INDUCTANCE | 0.27uH @200kHz |
| CAPACITANCE | 108.9pF @200kHz |
| OTHER | Teflon-insulated gold-plated RCAs |
