REDGUM Power Amplifiers
Dual Channel:
RG35m, RG60m, RG120m & RG120ENRm
Monoblock:
RG175m & RG175ENRm
RG300m & RG300ENRm

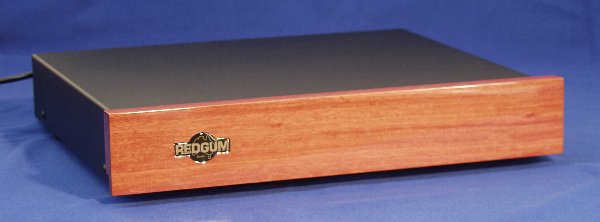

illustrated - RG120m Dual Channel Power Amplifier
| Description: | Power amplifier including control circuit. Rear mounted power switch. |
| Power Output: | RG30m - 35 + 35 Watt/Ch RMS (90 + 90 W RMS - transient)
RG60m - 60 + 60 Watt/Ch RMS (132 + 132 W RMS - transient) RG120m - 120 + 120 Watt/Ch RMS (285 + 285 W RMS - transient) RG120ENRm - 155+ 155 Watt/Ch RMS (293 + 293 W RMS - transient) RG175m - 175 Watt/Ch RMS (297 W RMS - transient) RG175ENRm - 200 Watt/Ch RMS (325 W RMS - transient) RG300m - 300 Watt/Ch RMS ( 596 W RMS - transient) RG300ENRm - 400 Watt/Ch RMS ( 632 W RMS - transient) |
| Harmonic Distortion: | less than .009% (below Clipping) |
| Intermodulation Distortion: | less than .005% (below Clipping) |
| Signal to noise: | greater than 100dB |
| Input Impedance: | 10K ohms (matches 600 ohms - 50K ohms) |
| Slew Rate: | greater than 65Volt / microsecond |
| Damping Factor: | RG30m & RG60m - greater than 150; all others - >800 |
| Frequency Response: | 0.8 Hz to 80KHz (-3dB points) |
| Peak Current: | greater than 120 amps |
| Audio Inputs: | via RCA sockets |
| Suggested Speakers: | REDGUM RGS Lucens or RGS Regnans (shielded Floorstanding Speakers) |
| Cabinet Finish: | high gloss solid Red Gum wood fascia, black gloss thick steel chassis |
| Options: |
remote power switching (additional charge only for Dual Channel models) key switch, rocker or toggle switch, or none; alternative front panels can made to order (at additional charge) or as supplied by customer; Other possibilities? Just talk to us about it! |
| Warranty: | Full 7 year Warranty |
| Dimensions: | 420mm (W) x 360mm (D) x 95mm (H) 16.5in (W) x 14.2in (D) x 3.75in (H)
ENR models: 420mm (W) x 360mm (D) x 145mm (H) |
| Shipping weight: | Dual Channel: from 9 kg / 20 lb (8.2 kg/ 18 lb cubic); Monoblocks: 11 kg/ 24 lb up to 22 kg / 48.5 lb ea |
~ product design and specification subject to change without notice ~
