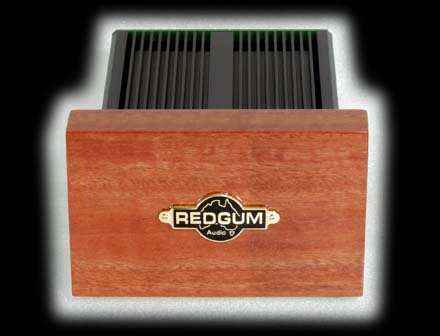

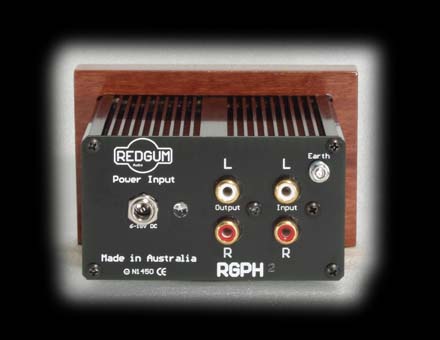

REDGUM RGPH2
MM & MC Phono Pre-Amplifier
Maximum Output Volts: +/- 14V =28V =9.9V RMS
Frequency Response: 10 to 35 KHz (follows RIAA curve +/- 0.5dB)
Channel Separation: >60dB
Sensitivity: 2.5mV for 300mV out
Signal to Noise ratio: >70dB
Input Impedance: matches 47K ohms
Power Supply requirements: AC or DC input, min 6v max 30V, 140mA (not supplied)
Case Finish: solid Red Gum wood fascia, anodized black aluminium case
Dimensions: 110mm (W) x 105mm (D) x 68 (H) - 4.3in (W) x 4.1in (D) x 2.7in (H)
Shipping weight: 0.6 kg/1.5 lb (1kg/2 lb cubic)
~ product design and specification subject to change without notice ~
