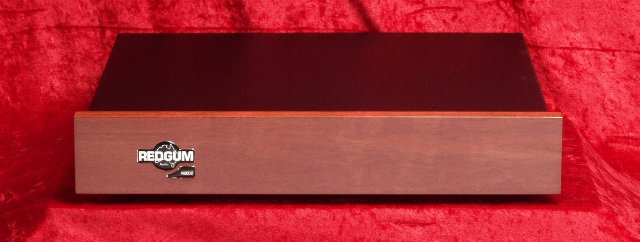

REDGUM RGDAC5

Digital-Analogue Converter

Using ultra-high quality Burr-Brown I.C.s with Audiophile-grade support components, the electronic circuits of the RGDAC5 are identical to those of the RGCD5ENR CD Player.

Cabinet Finish: High gloss, solid Red Gum wood front panel, black gloss thick steel chassis & cover

Audio Output: Via gold RCA Connectors on rear

Technical Specifications: Data re-clocking by Cirrus Logic using CS8412 crystal clock, followed by NPC digital filter. Each Channel has individual Burr-Brown PCM1702 20 bit Digital to Analogue converters feeding via direct coupling to individual final audio stages by Analog Devices AD711. Precision, high speed, BiFET Op Amp, 30MHz min Unity gain. THD+Noise, 98dB Dynamic range, 110dB S-N. Accepts 16 or 20 bit input data. Low-Jitter, on chip clock recovery. Supports AES/EUB,IEC958, S/PDIF, & EIAJ CP340 Professional & Consumer Formats. 7 internal power supplies from 2 transformers - 2 for CD Rom and 5 for DAC.

Frequency Range: 0Hz-24KHz +/-0.2dB (Burr-Brown p.15 Fig 15)

Signal to noise: 100dB +

Output Impedance: 47 ohms (matches 30 ohms to 100K ohms)

Power Requirements: 90-130 or 180-260 V ac 50/60 Hz via I.E.C. power socket on rear (Power cord not supplied)

Dimensions: 420mm (W) x 360mm (D) x 95mm (H) - 16.5in (W) x 14.2in (D) x 3.75in (H)

Shipping weight: 7 kg /14.5 lb (8.2 kg/ 18 lb cubic)



~ product design and specification subject to change without notice ~
