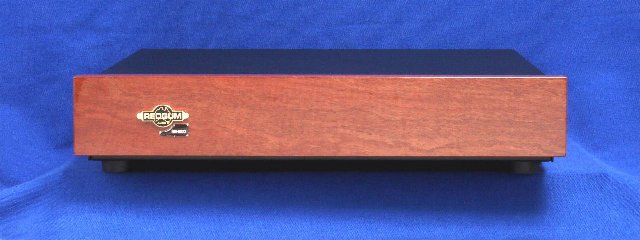

REDGUM RGDAC2

Using ultra-high quality Burr-Brown I.C.s with Audiophile-grade support components, the electronic circuits of the RGDAC2 are identical to those of the RGCD2 CD Player.

Cabinet Finish: High gloss, solid Red Gum wood front panel, black gloss thick steel chassis & cover

Audio Output: Via gold RCA Connectors on rear

Technical Specifications: Burr-Brown PCM1710U Dual 20 bit Digital to Analogue converter. Complete Stereo DAC, 8x Oversampling Digital Filter, Multi level Delta-Sigma DAC, Analogue low pass filter, output amplifier. -92dB THD+Noise, 98dB Dynamic range, 110dB S-N. Accepts 16 or 20 bits input data. DATA re-clocking by Cirrus Logic using CS8412 I/C. Low-Jitter, on chip clock recovery. Supports AES/EUB, IEC958, S/PDIF, & EIAJ CP340 Professional & Consumer Formats. Final Audio Stage by Analog Devices AD712J Dual Precision, High speed, BiFET Op Amp. 30MHz min Unity gain.

Frequency Range: 0Hz-24KHz +/-.2dB (Burr-Brown p.15 Fig 15)

Signal to noise: 100dB +

Output Impedance: 100 ohms (matches 100 ohms to 100K ohms)

Power Requirements: 180-260 V ac 50/60 Hz via I.E.C. power socket on rear (Power cord not supplied)

Dimensions: 420mm (W) x 360mm (D) x 95mm (H) - 16.5in (W) x 14.2in (D) x 3.75in (H)

Shipping weight: 7 kg /14.5 lb (8.2 kg/ 18 lb cubic)

~ product design and specification subject to change without notice ~
