REDGUM RGCD5ENR

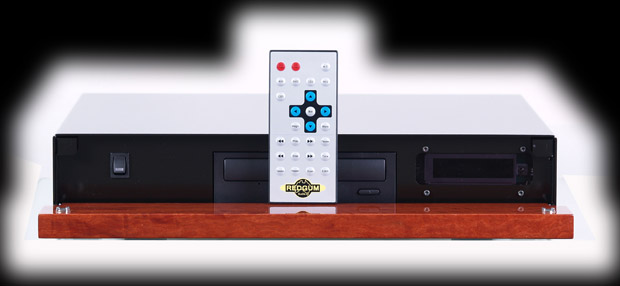

 Remote Control CD Player

( upgraded version of RGCD5 )



Transport: Can be replaced with any Computer CD ROM drive (Remote Control, multistack or single play) with Digital Out. Also most DVD ROM drives (as they are being used only in a transport capacity, no sonic effects on signal). Easy to replace - as simple as replacing a drive in your computer.
Note:  Full 7 year warranty on electronics other than CD ROM drive supplied  (3 mths warranty).

Digital to Analogue Converter: Ultra-high quality Burr-Brown I.C.s with Audiophile-grade support components

Cabinet Finish: High gloss, solid Red Gum wood front panel, black gloss thick steel chassis & cover

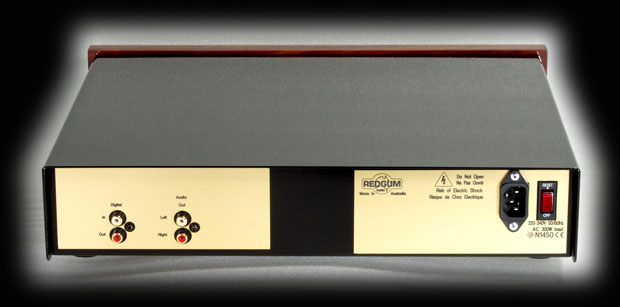

Audio Output: Via gold RCA Connectors on rear

Technical Specifications: Data re-clocking by Cirrus Logic using CS8412 crystal clock, followed by NPC digital filter. Each Channel has individual Burr-Brown PCM1702 20 bit Digital to Analogue converters feeding via direct coupling to individual final audio stages by Analog Devices AD711. Precision, high speed, BiFET Op Amp, 30MHz min Unity gain. THD+Noise, 98dB Dynamic range, 110dB S-N. Accepts 16 or 20 bit input data. Low-Jitter, on chip clock recovery. Supports AES/EUB,IEC958, S/PDIF, & EIAJ CP340 Professional & Consumer Formats. 7 internal power supplies from 2 separate mains sources - 2 for CD ROM and 5 (with double regulation) for DAC.

Frequency Range: 0Hz-24KHz +/-0.2dB (Burr-Brown p.15 Fig 15)

Signal to noise: 100dB +

Output Impedance: 47 ohms (matches 30 ohms to 100K ohms)

Power Requirements: 90-130 or 180-260 V ac 50/60 Hz via I.E.C. power socket on rear

Dimensions: 420mm (W) x 360mm (D) x 95mm (H) - 16.5in (W) x 14.2in (D) x 3.75in (H)

Shipping weight: 9 kg / 20 lb (8.2 kg/ 18 lb cubic)



~ product design and specification subject to change without notice ~
