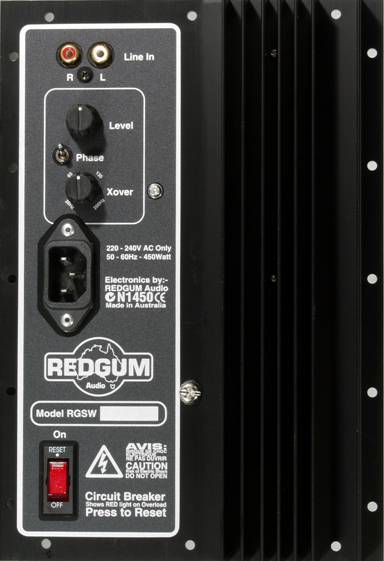

REDGUM RGSW4 Digital Subwoofer
Amplifier Plate
......when
you want the Subwoofer amplifier that other manufacturer’s choose.
Ultra-low heat generation are the key words.
For
installation in fixed installation, DIY or existing passive subwoofers.
......when
you want the Subwoofer amplifier that other manufacturer’s choose.
Ultra-low heat generation are the key words.
For
installation in fixed installation, DIY or existing passive subwoofers.
ü 600WRMS power output into 8 ohms

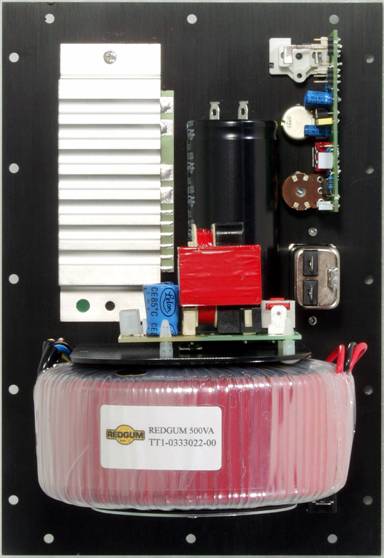

(900WRMS into 4 ohms) using 500va transformer
ü Fully sealed plate for installation
direct into subwoofer enclosure wall
ü Electronic Crossover adjustable from
20Hz to 200Hz
ü Highly efficient Class D digital
amplifier generates almost no heat!
ü Phase reversal switch for ease of
position adjustment
ü Level control to allow matching with a
wide range of Home Theatre systems
ü ‘Always On’ allows for instant operation
with no ‘warm-up period
ü Power switch incorporates overload
circuit-breaker with ‘trip’ light
ü Rigid one-piece heat-sink and plate
prevent vibration
ü Attractive slimline design
ü
Optional Hi-Level input board to allow connection direct to speaker
lines
REDGUM RGSW Amplifier Plate - Stunning!!
|
RGSW4 -
500VA Subwoofer Amplifier Plate |
|
1 year Warranty |
|
Power Output: |
|
600 Watt RMS 8 ohms - 900Watt RMS 4ohms |
|
Frequency Response: |
|
(relative to 20Hz/0db) minus 3db points are 1 Hz |
|
|
|
adjustable from 20 to 200Hz |
|
Electronic Crossover: |
|
variable from 20 to 200Hz at slope 6db/ octave |
|
Damping Factor: |
|
> 80 |
|
Input Sensitivity: |
|
220mV for 175W RMS (adjustable from 100mV to 25V) |
|
Signal to Noise (output
stage) |
|
> 110db |
|
Signal to Noise (overall): |
|
> 85db |
|
Slew Rate: |
|
35V / uS |
|
Input Impedance |
|
10k ohms |
|
Plate Finish: |
|
Anodised 3mm plate with integral heatsink |
|
Plate Dimensions: |
|
250mm (H) x172mm (W) x (160 internal + 30 external)mm
(D) |
|
Shipping weight: |
|
6.5 kg |
