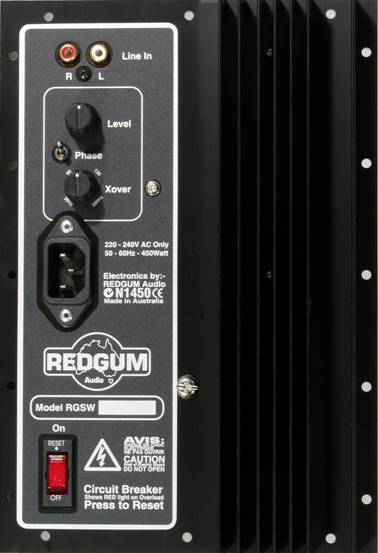

REDGUM RGSW2 Subwoofer Amplifier
Plate
......when
you want the Subwoofer amplifier that other manufacturer’s choose.
Bass weight and Extension are the key words.
For installation
in fixed installation, DIY or existing passive subwoofers.
......when
you want the Subwoofer amplifier that other manufacturer’s choose.
Bass weight and Extension are the key words.
For installation
in fixed installation, DIY or existing passive subwoofers.
ü 200WRMS power output into 8 ohms
(300WRMS into 4 ohms) using a 300va transformer
ü Fully sealed plate for installation
direct into subwoofer enclosure wall
ü Electronic Crossover adjustable from
20Hz to 200Hz
ü Highly stable, Audiophile quality MOSFET
output stages
ü Phase reversal switch for ease of
position adjustment
ü Level control to allow matching with a
wide range of Home Theatre systems
ü ‘Always On’ allows for instant operation
with no ‘warm-up period
ü Power switch incorporates overload
circuit-breaker with ‘trip’ light
ü Rigid one-piece heat-sink and plate
prevent vibration
ü Attractive slimline design
ü
Optional Hi-Level input board to allow connection direct to speaker
lines
REDGUM RGSW Amplifier Plate -
Stunning!!
|
RGSW2 -
300VA Subwoofer Amplifier Plate |
|
1 year Warranty |
|
Power Output: |
|
200 Watt RMS 8 ohms – 300 Watt RMS 4 ohms |
|
Frequency Response: |
|
(relative to 20Hz/0db) minus 3db points are 1 Hz |
|
|
|
adjustable from 20 to 200Hz |
|
Electronic Crossover: |
|
variable from 20 to 200Hz at slope 6db/ octave |
|
Damping Factor: |
|
> 800 |
|
Input Sensitivity: |
|
220mV for 175W RMS (adjustable from 100mV to 25V) |
|
Signal to Noise (output
stage) |
|
> 110db |
|
Signal to Noise (overall): |
|
> 85db |
|
Slew Rate: |
|
35V / uS |
|
Input Impedance |
|
10k ohms |
|
Plate Finish: |
|
Anodised 3mm plate with integral heatsink |
|
Plate Dimensions: |
|
250mm (H) x172mm (W) x (60 internal + 30
external)mm (D) |
|
Shipping weight: |
|
3.2 kg |
