REDGUM RGM300s

Pre + Dual Monoblock Amplifier Package

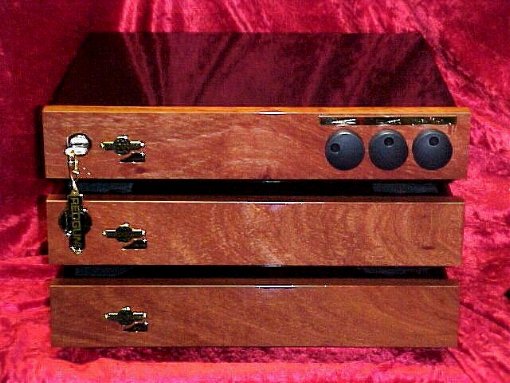

REDGUM RGM300 Monoblock Amplifier


Power Output: 300 + 300 Watt RMS into 8ohms continuous sine wave at onset of clipping
(596 + 596 RMS IHF Pulse)

Total Harmonic Distortion: Less than .009% (below Clipping)

Intermodulation distortion: Less than .005% (below Clipping)

Signal to noise: > 100db

Input Impedance: 10k ohms (matching 600 Ohms - 50k Ohms

Slew Rate: > 65Volt / microsecond

Damping Factor: > 150

Frequency Response: 0.8 Hz to 80KHz (-3db points)

Peak Current: > 150 amps

Audio Inputs: CD, DVD, Tuner, AV1, AV2

Suggested Speakers: RGS 'Lucens', 'Regnans or larger

Cabinet Finish: solid Red Gum fascia, powder-coated 1.6mm steel chassis

Dimensions: 3 x Chassis of 420mm (W) x 360mm (D) x 95mm (H) - 16.5in (W) x 14.2in (D) x 3.75in (H)

Shipping weight: 30.7 kg (3 x 8.16 kg cubic)


[ click on images for larger view ]
RGM300 inside view RGM300 side view RGM300 output stage

~ product design and specification subject to change without notice ~
