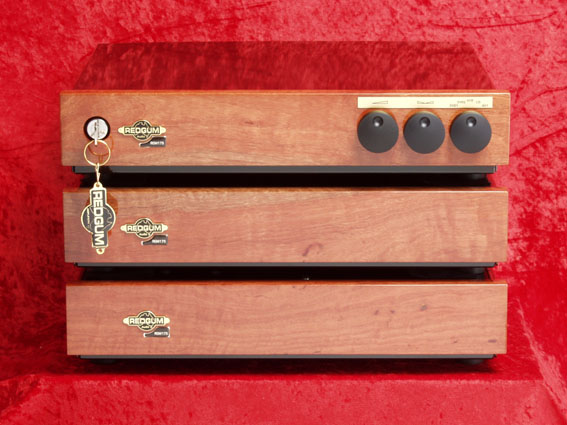

REDGUM RGM175s

Monoblock Amplifier

Power Output: 175 + 175 Watt RMS into 8ohms continuous sine wave at onset of clipping
(297 + 297 RMS IHF Pulse)

Total Harmonic Distortion: Less than .009% (below Clipping)

Intermodulation distortion: Less than .005% (below Clipping)

Signal to noise: > 100db

Input Impedance: 10k ohms (matching 600 Ohms - 50k Ohms

Slew Rate: > 65Volt / microsecond

Damping Factor: > 150

Frequency Response: 0.8 Hz to 80KHz (-3db points)

Peak Current: > 150 amps

Audio Inputs: CD, DVD, Tuner, AV1, AV2

Suggested Speakers: RGS38i

Cabinet Finish: solid Red Gum fascia, powder-coated 1.6mm steel chassis

Dimensions: 3 x Chassis of 420mm (W) x 360mm (D) x 95mm (H) - 16.5in (W) x 14.2in (D) x 3.75in (H)

Shipping weight: 25.4 kg (3 x 8.16 kg cubic)

REDGUM RGM175s amplifier rear view

~ product design and specification subject to change without notice ~
