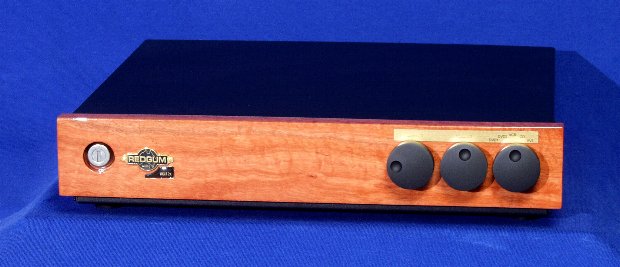

REDGUM RGi120s  Integrated Amplifier


REDGUM RGi120s Amplifier


Power Output: 120 + 120 watt/Ch RMS (285 + 285 RMS IHF Pulse)
Harmonic Distortion: less than .009% (below Clipping)
Intermodulation Distortion: less than .005% (below Clipping)
Signal to noise: greater than 100db
Input Impedance: 10k ohms (matches 600 ohms - 50k ohms)
Slew Rate: greater than 65Volt / microsecond
Damping Factor: greater than 150
Frequency Response: 0.8 Hz to 80KHz (-3db points)
Peak Current: greater than 150 amps
Audio Inputs: CD, DVD, Tuner, AV1, AV2
Suggested Speakers: RGS38i
Cabinet Finish: solid Red Gum wood fascia, powder-coated 1.6 mm steel chassis (black finish)
Dimensions: 420mm (W) x 360mm (D) x 95mm (H)
16.5in (W) x 14.2in (D) x 3.75in (H)
Shipping weight: 9.1 kg (8.16 kg cubic)

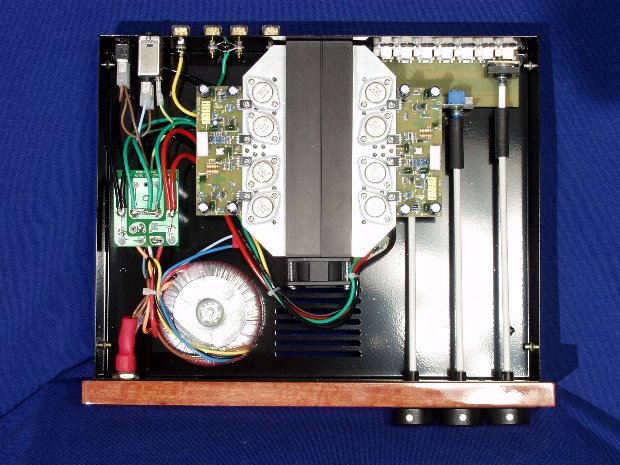

REDGUM RGi120s Amplifier - interior view


REDGUM RGi120s Amplifier - rear view


~ product design and specification subject to change without notice ~
